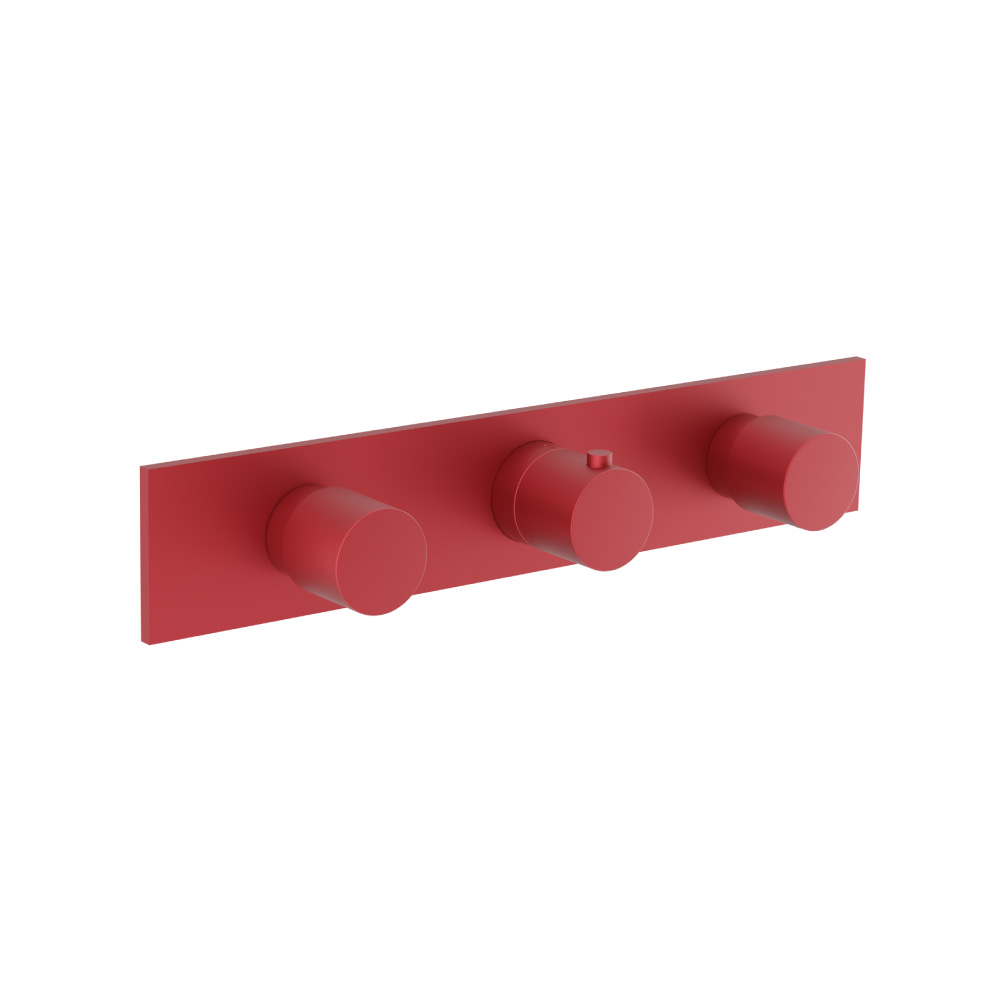

3/4" Horizontal Thermostatic Valve with 2 Volume Controls & Trim
Model#: ORO.2715CR - BEKIJK ALLE PRODUCTEN IN DEZE COLLECTIE
3/4" Horizontal Thermostatic Valve with 2 Volume Controls & Trim
Model#: ORO.2715CR - BEKIJK ALLE PRODUCTEN IN DEZE COLLECTIE
- Solid Brass Valve & Trim
- Includes Thermostatic Valve - TVH.2715
- With Integral Service Stops
- Shared 2 Port Water Flow
- Use in Tub & Shower Applications
- Extension Available - Part # TVH.4401E**
| afwerkingen |
|
| Speciale afwerkingen |
|
Crimson ( Speciale afwerkingen ) - 8 weken levertijd - Prijslijst € 1.162,00
PRODUCT STORINGSANALYSE:
The TVH.2715 Thermostatic valve features 3/4” NPT connections and has 2 water outputs [ports] which are operable simultaneously, i.e both at the same time, or one at a time. The middle handle sets the temperature. The left handle controls output port 1 and the right handle controls output port 2. Each port has full volume control capability.
SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS – The cut out in wall should be 2.08 X 12.48 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS – The cut out in wall should be 2.08 X 12.48 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Productcollectie | Oros |
| Stijl | Moderne |
| Garantie | Zie de garantie pagina voor volledige informatie over de garantie van 5 jaar. |
Product documenten
Productgegevensblad
Installatie
video Product informatie:
| Draadaansluiting | 3/4" binnendraad |
| Geïntegreerde volumeregeling | Ja |
| Inclusief installatieklep | Ja |
| Type klep | Thermostatisch |
| Montage Type | Wandmontage |
| Verlengstukken beschikbaar | Ja |
| Materiaal | Messing |
| Temperatuurcartridge | TVH.4201-9853 |
| Greepvariant | Knopgreep |
| Volume Control Cartridge | TVH.4511-9853 |
| Flow Rate | 30.28 LPM @ 4 BAR |
| Output Ports | 2 |
Beschikbare afwerkingen:
| Model# | Afwerking | Prijslijst (€) |
|---|---|---|
| ORO.2715CP | Chroom | € 944,00 |
| ORO.2715BN | Geborsteld nikkel PVD | € 994,00 |
| ORO.2715MB | Mat zwart | € 1.032,00 |
| ORO.2715SB | Geborsteld messing PVD | € 1.032,00 |
| ORO.2715BB | Geborsteld brons PVD | € 1.032,00 |
| ORO.2715VB | Vortex Brown | € 1.162,00 |
| ORO.2715AG | Army Green | € 1.162,00 |
| ORO.2715SKB | Sky Blue | € 1.162,00 |
| ORO.2715SG | Steel Grey | € 1.162,00 |
| ORO.2715RG | Rock Grey | € 1.162,00 |
| ORO.2715NB | Navy Blue | € 1.162,00 |
| ORO.2715LV | Light Verde | € 1.162,00 |
| ORO.2715LT | Light Tan | € 1.162,00 |
| ORO.2715LG | Leaf Green | € 1.162,00 |
| ORO.2715IG | Flusso Green | € 1.162,00 |
| ORO.2715GMG | Gun Metal Grey | € 1.162,00 |
| ORO.2715GB | Gloss Black | € 1.162,00 |
| ORO.2715DT | Dark Tan | € 1.162,00 |
| ORO.2715DR | Deep Red | € 1.162,00 |
| ORO.2715DGR | Dark Green | € 1.162,00 |
| ORO.2715DG | Dark Grey | € 1.162,00 |
| ORO.2715CR | Crimson | € 1.162,00 |
| ORO.2715BP | Blue Platinum | € 1.162,00 |
