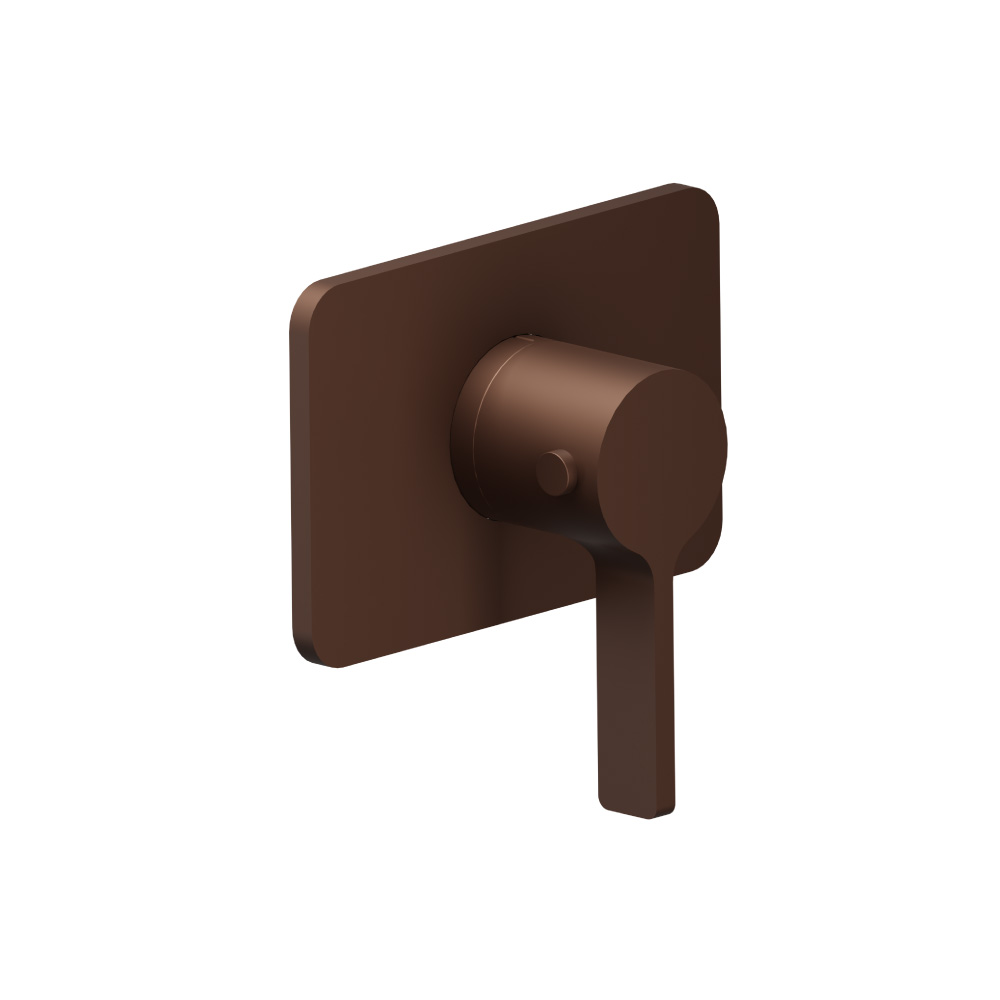

3/4" Thermostatic Valve With Trim
Model#: CIR.4201VB - BEKIJK ALLE PRODUCTEN IN DEZE COLLECTIE
- Solid Brass Valve & Trim
- Includes Thermostatic Valve - TVH.4201
- 3/4" NPT Female Connections
- Extensions Available - TVH.E185**
| afwerkingen |
|
| Speciale afwerkingen |
|
Vortex Brown ( Speciale afwerkingen ) - 8 weken levertijd - Prijslijst € 673,00
PRODUCT STORINGSANALYSE:
The TVH.4201 is a ¾” Thermostatic valve with NPT female connections. It has two inlets with integral stop kits and single output. The valve has a flow rate of 49.21 LPM @ 4 BAR. The TVH.4201 does not have water turn off capability and thus must be used with a volume control or diverter valve.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77” and 3.44”. Also, the valve must be installed vertical and not at an angle. In case, the tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4201 valve is 1.40”). Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes.
Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77” and 3.44”. Also, the valve must be installed vertical and not at an angle. In case, the tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4201 valve is 1.40”). Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes.
Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Productcollectie | Crista |
| Stijl | Moderne |
| Garantie | Zie de garantie pagina voor volledige informatie over de garantie van 5 jaar. |
Product documenten
Productgegevensblad
Installatie
video Product informatie:
| Draadaansluiting | 3/4" binnendraad |
| Geïntegreerde volumeregeling | Ja |
| Inclusief installatieklep | Ja |
| Type klep | Thermostatisch |
| Montage Type | Wandmontage |
| Verlengstukken beschikbaar | Ja |
| Materiaal | Messing |
| Temperatuurcartridge | TVH.4201-9853 |
| Doorstroomhoeveelheid | 49,21 LPM @ 4 BAR |
| Greepvariant | Hendelgreep |
Beschikbare afwerkingen:
| Model# | Afwerking | Prijslijst (€) |
|---|---|---|
| CIR.4201CP | Chroom | € 532,00 |
| CIR.4201BN | Geborsteld nikkel PVD | € 553,00 |
| CIR.4201PN | Gepolijst nikkel PVD | € 553,00 |
| CIR.4201MB | Mat zwart | € 584,00 |
| CIR.4201SB | Geborsteld messing PVD | € 584,00 |
| CIR.4201BB | Geborsteld brons PVD | € 584,00 |
| CIR.4201VB | Vortex Brown | € 673,00 |
| CIR.4201AG | Army Green | € 673,00 |
| CIR.4201SKB | Sky Blue | € 673,00 |
| CIR.4201SG | Steel Grey | € 673,00 |
| CIR.4201RG | Rock Grey | € 673,00 |
| CIR.4201NB | Navy Blue | € 673,00 |
| CIR.4201LV | Light Verde | € 673,00 |
| CIR.4201LT | Light Tan | € 673,00 |
| CIR.4201LG | Leaf Green | € 673,00 |
| CIR.4201IG | Flusso Green | € 673,00 |
| CIR.4201GMG | Gun Metal Grey | € 673,00 |
| CIR.4201GB | Gloss Black | € 673,00 |
| CIR.4201DT | Dark Tan | € 673,00 |
| CIR.4201DR | Deep Red | € 673,00 |
| CIR.4201DGR | Dark Green | € 673,00 |
| CIR.4201DG | Dark Grey | € 673,00 |
| CIR.4201CR | Crimson | € 673,00 |
| CIR.4201BP | Blue Platinum | € 673,00 |
